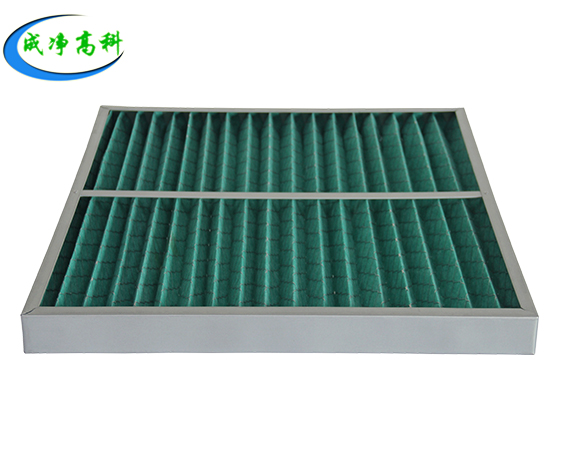

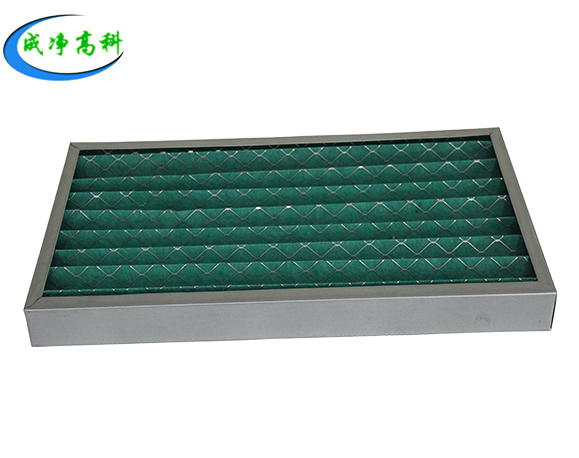

Fold-down coarse efficiency air filter
特點Features
●紙框或鋁合金金屬外框
●阻力小、風量大
●適用于空調系統的初級過濾
●Paper box or aluminum metal frame
●Responding to small resistance, air
●Applicable to air conditioning system adopts the primary filtration
型號尺寸及其他參數
Standard specification
|
型號 model |
外形尺寸 Outside Dimensions (mm) |
額定風量 Rated air flow (m3/h) |
初阻力 Initial resistance (Pa) |
效率（級別） Efficiency(class) |
濾料型號 Model of filter media |
|
|
CJ-S4-1 |
295×295×46mm 12″×12″×13/4″ |
800m3/h |
25Pa |
50% (計重法) weight |
G3 G4 |
綠色、藍色、白色初效過濾棉 Green, blue, white, early filter cotton effect |
|
CJ-S4-2
|
495×295×46mm 20″×12″×13/4″ |
1300m3/h |
||||
|
CJ-S4-3
|
495×495×46mm 20″×20″×13/4″ |
2200m3/h |
||||
|
CJ-S4-4
|
595×295×46mm 24″×12″×13/4″ |
1600m3/h |
||||
|
CJ-S4-5
|
595×495×46mm 24″×20″×13/4″ |
2700m3/h |
||||
|
CJ-S6-6
|
595×595×46mm 24″×24″×13/4″ |
3200m3/h |
||||
*可要據用戶要求定制不同規格型號的過濾器
According to user requirements to customize different specifications and types of filters
